SP2-P
Horizontal double-spindle machining center

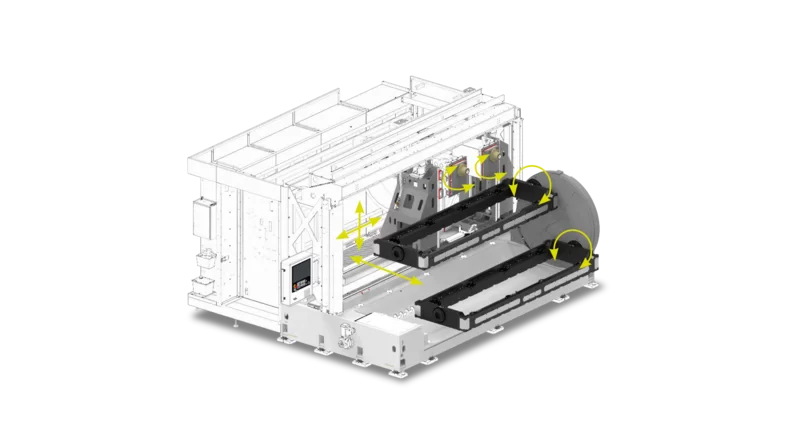

The SP series is a flexible machining center for 4- or 5-axis double machining of large-volume components. The large work area allows maximum flexibility in process design and machining. Two independent spindles machine either two components synchronously or simultaneously a large component with a maximum length of 3,400 mm and an interference circle of 1,200 mm.
Key benefits:
Workpiece loading parallel to machining time thanks to second A-axis
Manual loading at an ergonomic height
Zero-point clamping systems under the clamping nests.
Tool magazines with a capacity of up to 61 tools per spindle.
Large installation space - over 3.4 m in X-direction and Ø1.2 m interference circle
Standard bridge: integrated zero-point clamping systems allow you to switch between different components/machines in the SP and PP series with minimal set-up effort
Technical details:
| Machine model | SP2-P |
|---|---|
| Number of axes | 4(5) |
| X/Y/Z travel [mm] | 3200/915/630 |
| X/Y/Z feed [m/min] | 90/60/60 |
| Maximum component size [mm] | 3400/ ø1200 |
| Tool holder | HSK63A |
| Tool capacity | 2x29 (2x41, 2x61) |
| Maximum load on A-axis [kg] | 3000 (per A-axis) |
| Controls | Siemens control |
Typical components
The SP series is perfect for processing large-volume components.
Battery trays
Structural components
Structural components
