SP2
Horizontal double-spindle machining center for large-volume components

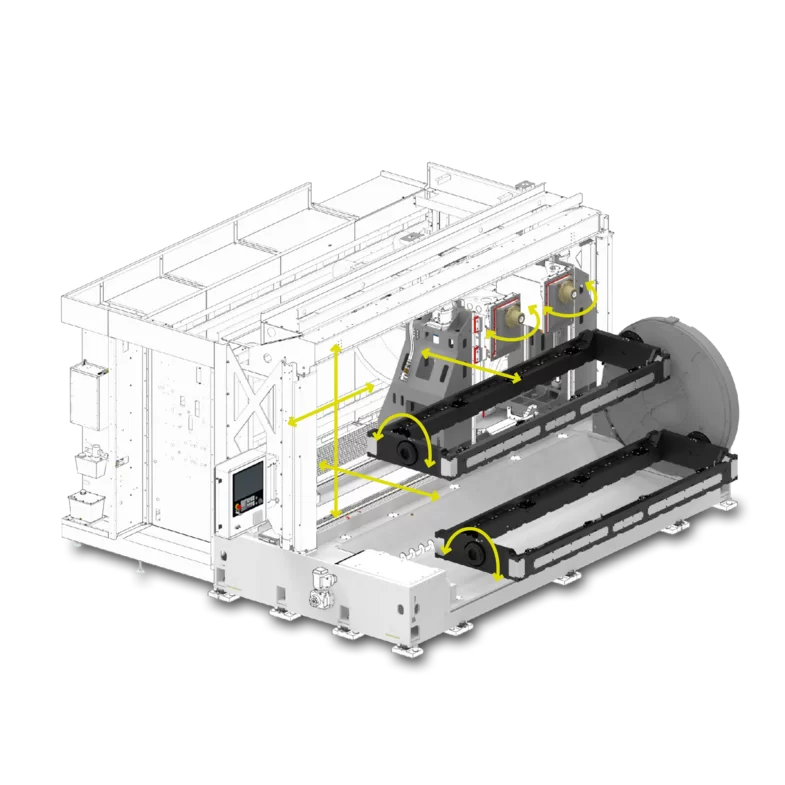

The SP2 is a flexible machining center for 4- or 5-axis dual-spindle machining of large-volume components. Its generous work envelope provides maximum flexibility in process design and machining. Two independent spindles can either machine two components simultaneously or work together on a single large component with a maximum length of 3,400 mm and a maximum swing diameter of 1,200 mm. While the SP2-D can be loaded manually or automatically, the SP2-P with pallet changer enables loading and unloading in parallel with machining.
Key Benefits:
Efficient machining thanks to two independent travelling columns
Flexible machining of one large workpiece or two components simultaneously
Large work envelope for components up to 3,400 mm in length and a swing diameter of 1,200 mm
6-sided machining in a single setup with the optional B-axis
High axis dynamics with rapid traverse rates of up to 80 m/min
Reduced setup effort thanks to integrated zero-point clamping systems on the standard bridge
Tool magazines with up to 61 tools per spindle
Technical Details:
*Options available
| Machine model | SP2-D | SP2-P |
|---|---|---|
| X/Y/Z Travel [mm] | 3,200/915/630 | |
| Number of axes | 4 (5) | |
| Number of spindles | 2 | |
| X/Y/Z feed rate [m/min] | 80/80/80 | |
| Maximum workpiece size [mm] | 3,400 x Ø1,200 | |
| Spindles | 18,000 rpm; 30/50 kW (S1/S6-30%); 50/80 Nm (S1/S6-30%) | |
| Tool holder | HSK 63A | |
| Tool capacity* | 2 x 29 | |
| Max. load on A-axis | 3,000 | 3,000 (per A-axis) |
| Control System | Siemens One | |
Typical Components
The SP2 is particularly well-suited for the production of structural components or profiles.
Battery Trays
Structural components
Profiles
Machine Dimensions
SP2-D/ SP2-P
